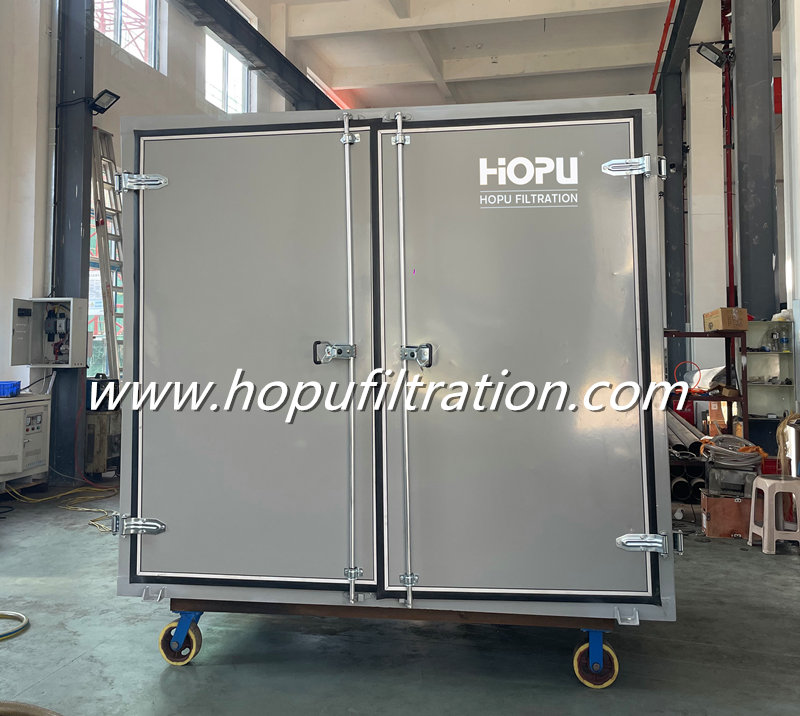

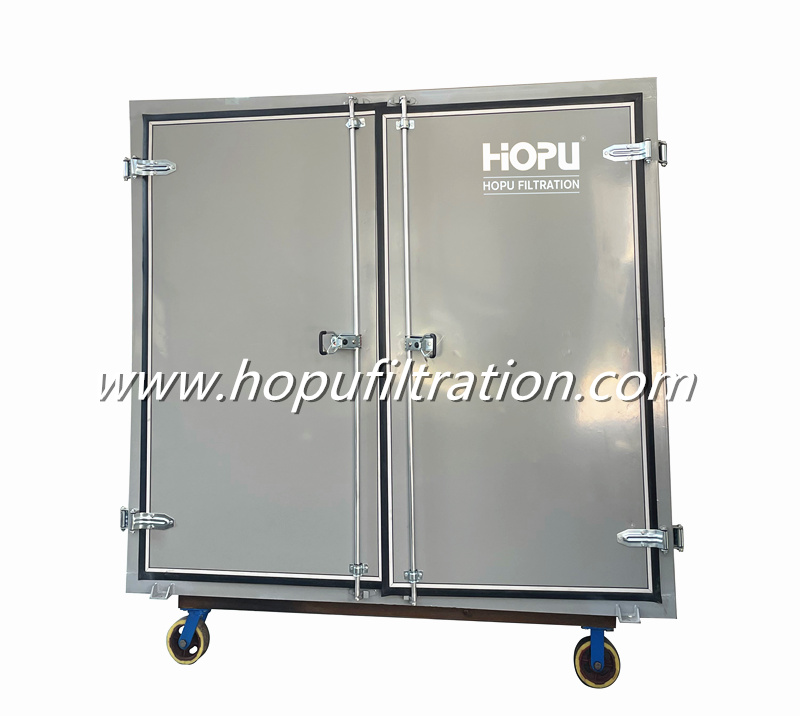

Container Enclosure Transformer Oil Filtration and Purification Plant for Outdoor Substation Maintenance

Inquire Now Next ProductDownload
share

Product Description

Container Enclosure Transformer Oil Filtration and Purification Plant for Outdoor Substation Maintenance

HOPU Enclosed Oil Purifier Application

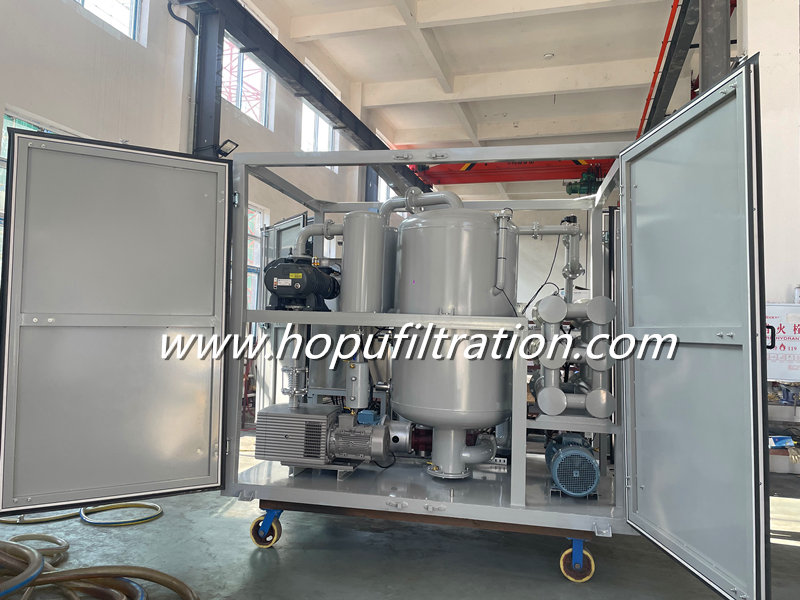

Weather-proof canopy enclosed type transformer Oil Purifier installed with weather-proof ,dust-proof canopy, it is can be working for outdoor area.

The steel enclosure canopy is suitable for weather-proof ,dust-proof site working

The aluminum enclosure canopy is IP55 protection.

It is is professional for treatment of transformer oil, suitable for outdoor oil filtration, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of large capacity transformers.

Container Enclosure Transformer Oil Filtration and Purification Plant for Outdoor Substation Maintenance

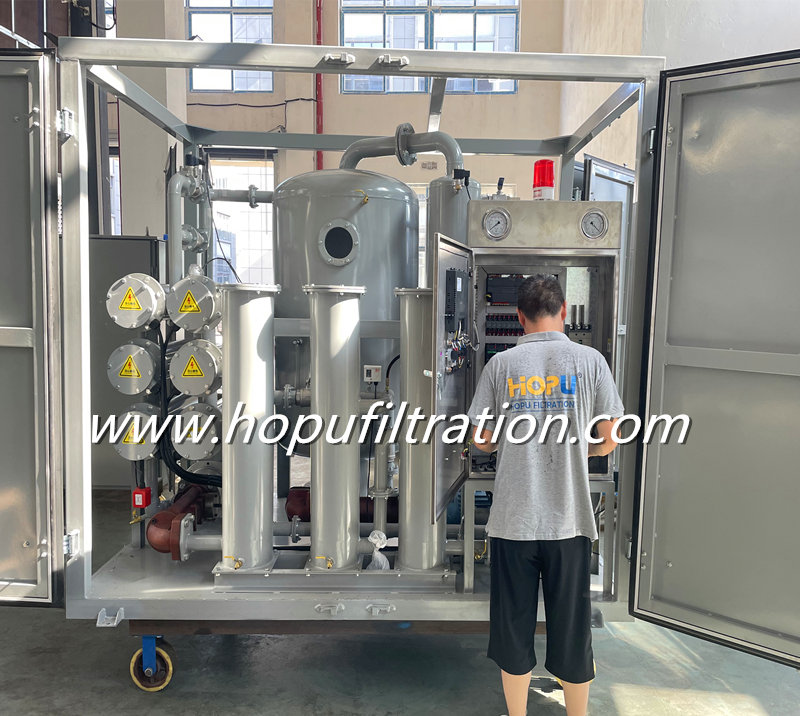

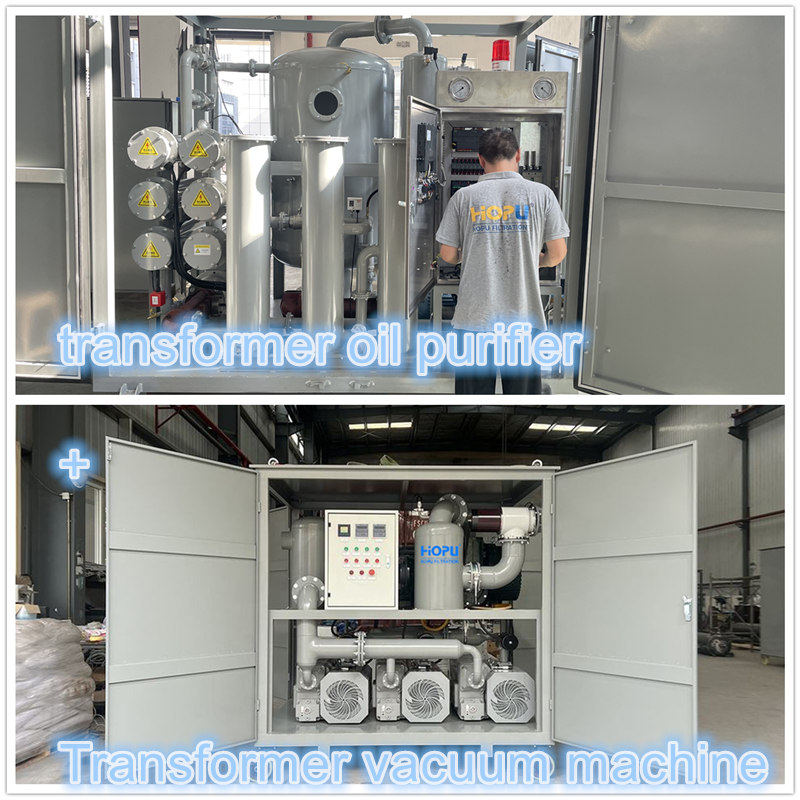

Double-stage High Vacuum Transformer Oil Filtration Machine is a ultra high vacuum oil dehydration system for Dielectric Transformer Oil Purification and Oil Filtering. This  transformer oil filtration equipment can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipment working safely and normally. It's particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work on-site. Meanwhile, it can be used as independent vacuum resource with functions of vacuum drying and vacuum oiling.

Container Enclosure Transformer Oil Filtration and Purification Plant for Outdoor Substation Maintenance

Weather-proof Canopy Transformer Oil Purifier for outdoor service Features

1. Weather and dust resistant, convenient for outdoor use.

2. And it has double-stage high pumping speed vacuum system, multistage stage vacuum analytical separation system, it can quickly separate out water, gases, impurities, polar substances and other deteriorated materials.

3. Adopting the three-dimensional flash evaporation dehydration and degassing technology, it high efficiently separates water, gases from the oil, making the breakdown voltage rapidly increase to above 75KV.

4. Adopting the complex high speed degassing spiral flow structure, oil gas separate dual channel technology, re dissolution technology in anti oil gas separation, it quickly removes various organic hydrocarbon gases, ensuring no acetylene and hydrogen in oil.

5. Adopting carbon fiber infrared heating, grouped ultra low surface load, PID constant temperature control and dual temperature flow protection technology. Inside the machine installed the the diameter increase oil flow direction turning overflow technology to prevent "dead oil area", over-temperature and drying.

6.  Adopting multistage high β value compound filtration system, linear coupling filter seal, it can effectively filter even the tiny particles mechanical impurities.

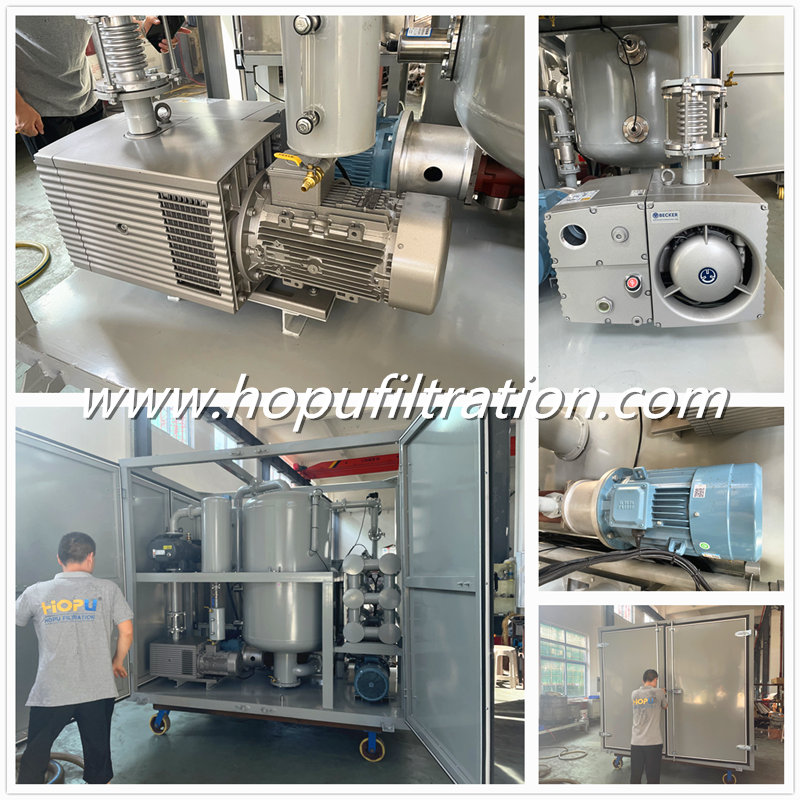

7. Specially made precise oil pump with low noise meeting environmental protection requirement.

8. Online filtering oil; with nobody watching is okay, and it can also be used for vacuum oiling the transformers etc and drying its hot oil.

9. Equipped with advanced infrared liquid level auto control system, auto defoaming control system, pressure protection system and safety interlock control to ensure that the equipment work for long time, safely and reliably.

Container Enclosure Transformer Oil Filtration and Purification Plant for Outdoor Substation Maintenance

Transformer Oil Purification Plant Technical data

ParametersModel
Unit
ZYD-E
Flow RateL/H1800300060009000120001500018000
Working Vacuum DegreeMPa-0.08 ~ -0.099
Working
Discharge Pressure
MPa≤ 0.3
Temperature
Control Range
ºC20 ~ 80
Operation TemperatureºC40 ~ 70 (65ºC is best)
Power Supply
380V, 50Hz, 3 phases (or as per your requirements)
Working hours
without Trouble
Hour4000
Continuous Working HoursHour150
Ambient Temperature
-25 ~ 55ºC
Working NoisedB(A)65 ~ 90
Heating Power
(adjusted available)
KW30486090135150180
Total PowerKW35.552.568105154165208
Inlet/Outletmmφ25φ32φ42φ50φ50φ60φ60
WeightKg60070010501150145016001950
Dimensionmm1380×1020×17601610×1250×19501750×1350×21501850×1400×22001950×1500×23002050×1600×24002200×1750×2550
After FiltrationMoisture (Water Content)   ≤ 5 PPM
Gas Content  ≤0.01% (Vol)
Impurities Degree (Filtration precision)  ≤ 1 micron (no free carbon)
Breakdown Voltage (Dielectric Strength)   ≥70 KV
Flash Point  ≥145ºC
Cleanliness  ≤NAS 1638 Grade 6

Note:     1. The dimension and weight will be changed with changing of technical specs.

             2. All the specs can be customized according to client's requirements.

Container Enclosure Transformer Oil Filtration and Purification Plant for Outdoor Substation Maintenance

HOPU Oil Purification Machine Optional Design

1.Siemens Brand P.L.C (Programmable Logic Controller)

2.Flow Meter

3.Continuous Online Moisture Analyzer in Oil

4.Continuous Online Moisture and Particles in Oil Monitor

5.Metallic Weather Proof Enclosure

6.Double-axles trailer for outdoor use

7.Regeneration system with special brand of earth can remove acidity, sludge, other soluble oil decay products and discoloration

Container Enclosure Transformer Oil Filtration and Purification Plant for Outdoor Substation Maintenance

HOPU Oil Filtration Manufacturer is professional for different oil filtration solutions, HOPU can supply the best quality oil purification machine to you. Our price is competitive and we take responsibility to any quality uncertainty. We produce our products using only high quality raw materials and employ many skilled employees and technicians. For more product specification please contact us by email for a detailed catalog. Our factory can provide the most preferential profit to customers all over the world with competitive prices and high quality items.
