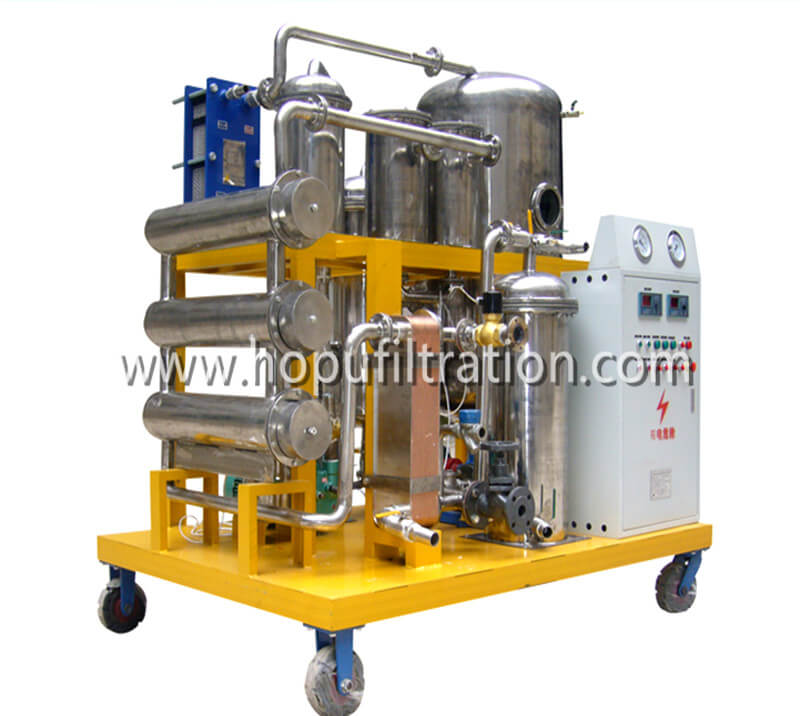

Vacuum Hydraulic Oil Filtration Machine Application:
HOPU Hydraulic Oil Filtration Machine is specially used in the treatment and regeneration of fire-resistant hydraulic oil in the big and medium-sized thermo electric generator speed-governing system. The 304 stainless steel body can be applied for purifying and filtering the Fire-resistant Hydraulic Oil.
It can remove free water, emulsified water ,suspended solids and dirt from hydraulic oil.
Hydraulic lubricating oil treated by this machine contains so low emulsification value, few water content and impurities that it can be used repeatedly in the highly precise hydraulic lubricating equipment .Enhances the oil quality, restores the lubricating oil viscosity, augments the flash point and improves the operational performance. Guaranteed the hydraulic system and the dynamic system, the lubrication system normal operation, so the machine is suit for many lines, such as the mine, metallurgy, electric power, transportation, manufactures and so on.
Features:
1.Strong capability of breaking emulsification, make the turbid and emulsified hydraulic oil become limpid and clear.
2.The combination of coalescing-separation filter elements and vacuum dehydrator.
3.Strong ability to filter the impurity, which can filter the particles completely.
4.It has the back flush system, which can clear impurities automatically.
5.Advanced dielectric condensation device
6.This machine installs the new pressure protector, which can control the temperature automatically;
7.We adopt the high quality filter materials, which has a good function in anti-corrosive, thermostable, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.
8. The unique degas and dehydrator system: Using the Stereo-Evaporation technical, which can separate the water and gas from the oil quickly by the Multi-level water-oil separation technology.
Technical specs( It will be changed as customer's requirements)
|
Item |
Unit |
TYH-10 |
TYH-20 |
TYH-30 |
TYH-50 |
TYH-100 |
TYH-150 |
TYH-200 |
TYH-300 |
|
Flow Rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
|
Vacuum Degree |
MPa |
-0.06 ～ -0.095 |
|
Working Pressure |
MPa |
≤0.4 |
|
Temperature |
℃ |
0 ～ 100 |
|
Power Supply |
|
3phrase,50Hz, 380V(or as needed,please contact HOPU sales) |
|
Working Noise |
dB(A) |
≤75 |
≤75 |
≤75 |
≤78 |
≤78 |
≤78 |
≤80 |
≤82 |
|
Heating power |
kW |
36 |
40 |
45 |
72 |
80 |
90 |
120 |
135 |
|
Total power |
KW |
38 |
42 |
47 |
75 |
87 |
101 |
135 |
147 |
|
Inlet/outlet caliber |
mm |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
60 |
|
Weight |
Kg |
450 |
550 |
600 |
750 |
850 |
1000 |
1200 |
1500 |
|
Dimension |
Length |
mm |
1500 |
1500 |
1500 |
1600 |
1750 |
1900 |
1900 |
2100 |
|
Width |
mm |
1000 |
1050 |
1050 |
1150 |
1250 |
1600 |
1700 |
1700 |
|
Height |
mm |
1200 |
1600 |
1600 |
1700 |
1800 |
1950 |
2000 |
2100 |
|
Parameter After Purification |
|
Demulsification value |
min |
New oil ≤15min, running oil ≤30min |
|
Water Content |
PPM |
≤20 |
|
Gas Content |
% |
≤o.1 |
|
Cleanness |
NAS |
≤5 grade |
