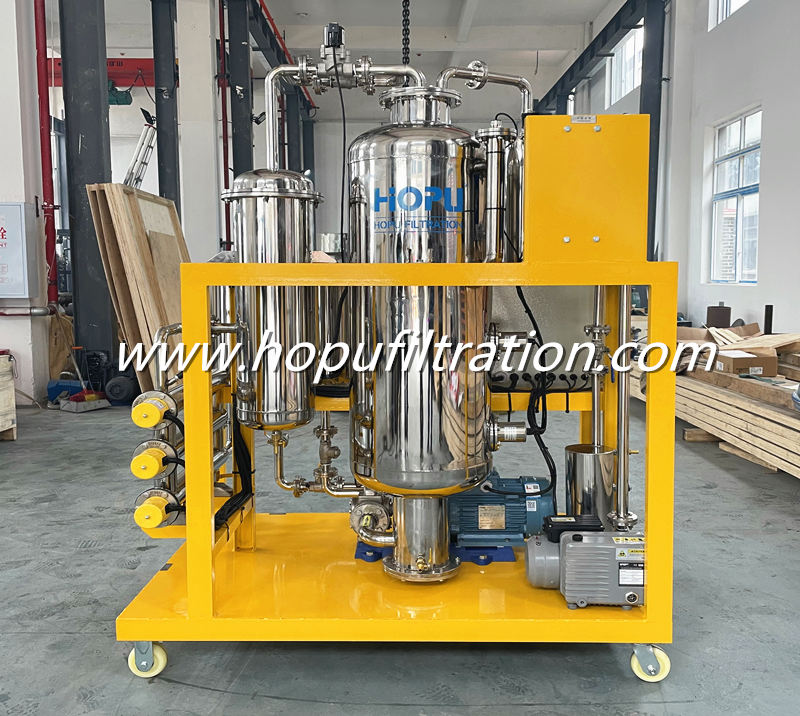

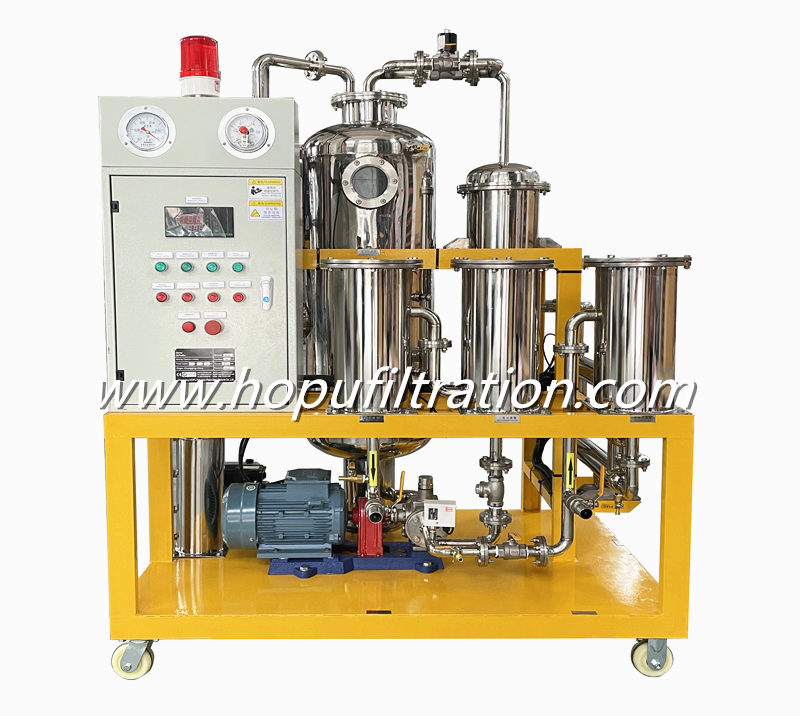

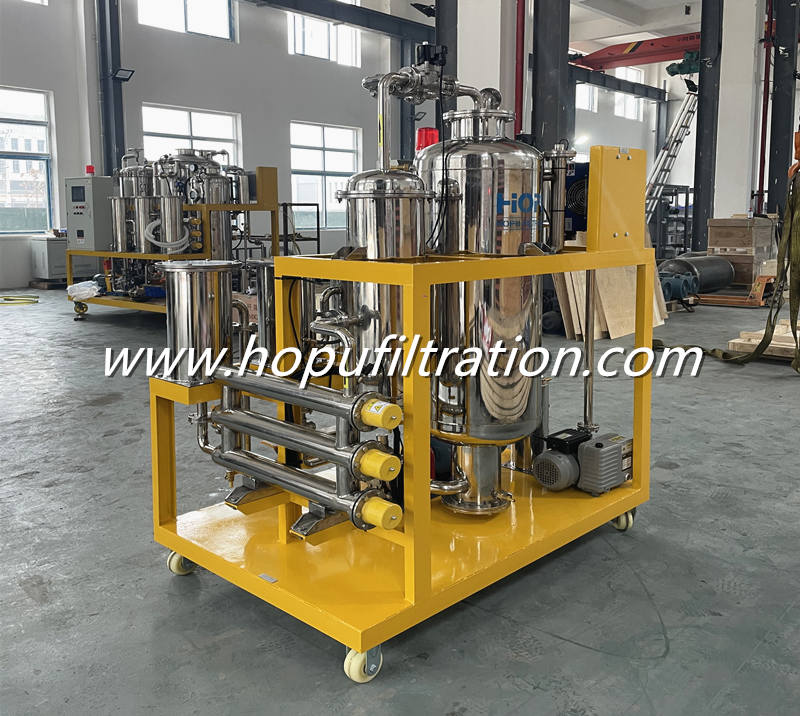

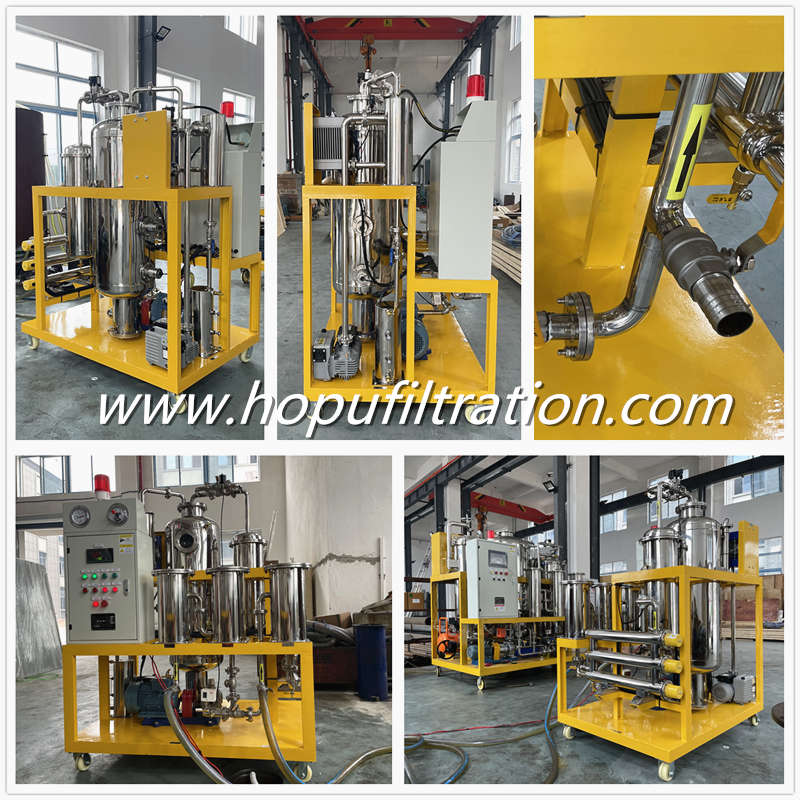

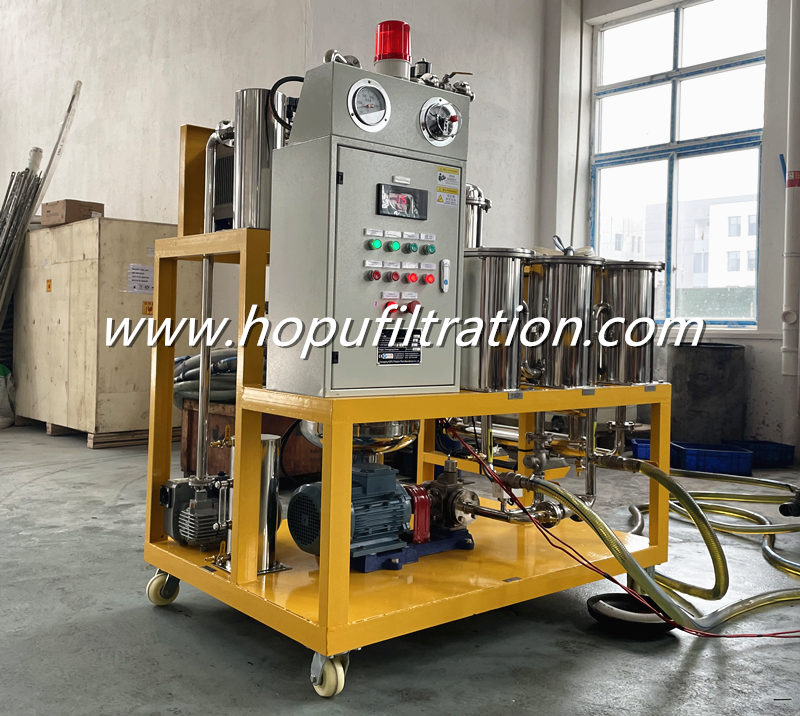

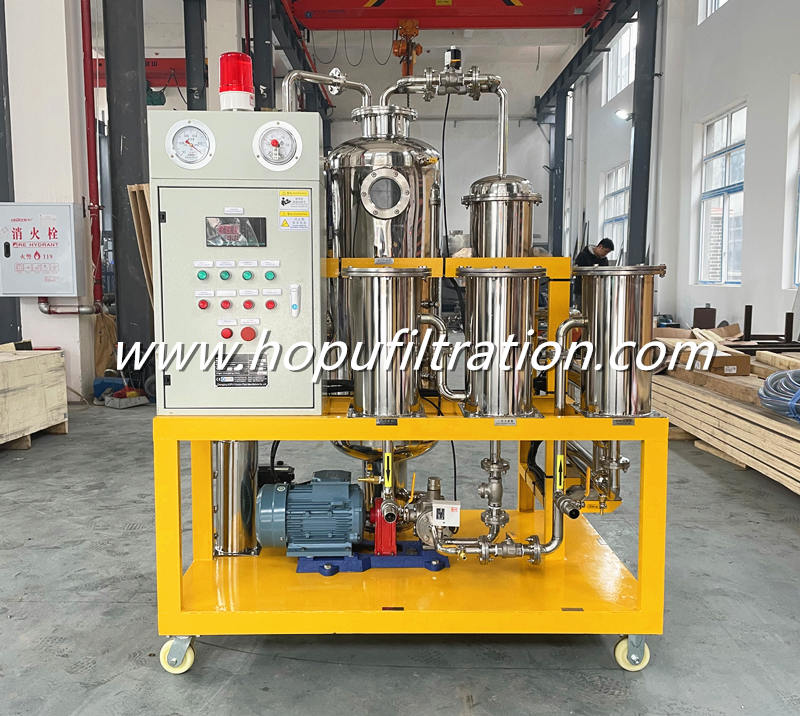

Thermal Power Plant Fire Resistant Hydraulic Oil Stainless Steel Oil Filtration Plant
Application:
HOPU fire-resistant oil purifier is the new generation of vacuum oil purifier specially designed for unqualified phosphate ester fire resistant fluids (in EHC System), which can carry out regeneration and purification treatment of deteriorated fire-resistant oil, and effectively remove the acid, pigment, gas, water content and impurities. It adopts materials which are compatible with fire-resistant oil, and vacuum dehydration, multistage fine filtration (ICB filter, volume resistivity filter and stainless steel filter), new type resin exchange deacidification and other oil treatment technology. After treatment, the fire resistant-oil reaches qualified standards. It is mainly applicable for purification and regeneration of fire-resistant hydraulic oil in large and medium-sized thermal power plant control system, fire-resistant oil (EHC) system and mechanical equipment. it can be used for process of online operation, movable oil filtration, new oil filling etc. and extend the service life of fire-resistant oil, as well as maintain the host security and save energy.
Stainless Steel Hydraulic Oil Purifier Features:
With technology ICB (ionic resin to remove and keep acid value at tolerable levels)
All the pipes and tanks are made of stainless steel (SUS304) material.
Take full account of the characteristics of the phosphate ester fire-resistant oil in design. Low temperature operation and pure physical purification.
With powerful filtration capacity for impurities, the machine adopts filtration material with compound microporous structure.
Strong dehydration and degassing capacity.
Exceptional deacidification and decolorization capacity.
Equipped with perfect protection device.
With electrical control system, it is easy to operate, reliable, and can be unattended.
Stainless Steel Hydraulic Oil Purifier Machine Parameters:
| Item | Unit | TYA-S-10 | TYA-S-20 | TYA-S-30 | TYA-S-50 | TYA-S -100 | TYA-S-150 | TYA-S -200 | TYA-S -300 |
| Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
| Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Working vacuum | Mpa | -0.06 ~- 0.095 |
| Working pressure | Mpa | ≤0.4 |
| Temperature | ºC | 0~100 |
| Power supply |
| 380V/50HZ/3Ph 5 wire( Customized) |
| Working time | H | ≥ 4000 |
| Continuous working time | H | ≥150 |
| Working noise | dB(A) | ≤65 | ≤68 | ≤68 | ≤70 | ≤70 | ≤75 | ≤75 | ≤78 |
| Electric heating power | kW | 15 | 18 | 24 | 36 | 60 | 72 | 120 | 150 |
| Total electric power | kW | 17 | 20 | 26 | 39 | 65 | 79 | 128 | 180 |
| Outlet(inlet) caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф45 | Ф50 | Ф60 |
| Weight | kg | 350 | 400 | 450 | 500 | 900 | 1300 | 1500 | 1800 |
| Size | L | mm | 1350 | 1400 | 1450 | 1500 | 1700 | 1800 | 2000 | 2100 |
| W | mm | 950 | 1000 | 1050 | 1100 | 1150 | 1250 | 1400 | 1450 |
| Index after filter | Moisture | PPM | ≤5 |
| Gas | % | 0.1 |
| Particle | μm | ≤1 |
| Acid | mKOH/g | ≤0.03 |
| Resistance value |
| ≥6×109 |
| Cleaness | grade | ≤4(NAS 1638) |
HOPU Oil Filtration Manufacturer is professional for different oil filtration solutions, HOPU can supply the best quality oil purification machine to you. Our price is competitive and we take responsibility to any quality uncertainty. We produce our products using only high quality raw materials and employ many skilled employees and technicians. For more product specification please contact us by email for a detailed catalog. Our factory can provide the most preferential profit to customers all over the world with competitive prices and high quality items.
FAQ
Are you a manufacturer or trading company?
Manufacturer.
HOPU has three workshops to design different product
Workshop 1 is for domestic and standard product design for oil purifier and oil testing unit
Workshop 2 is for double vacuum chamber or high vacuum oil purifier design
Workshop 3 is for customized designs and OEM order
How to ensure the security of purchase from HOPU ?
HOPU is a legal and customs registered enterprise, our products are legal in global customs. Quality and and after sales service can be guaranteed
How to get a quick quotation?
HOPU’s products are supplied and exported to global market, and we will offer quotations to customers from all over the world.
Generally you will receive a reply within 12 hours (due to time difference) from our Service team or salesman
If your inquiry includes complete company name, website, telephone number and specific request of product, you will get a quick quotation
Your inquiry message will be replied within 12 hours
