Plate and Frame Type Oil Purifier Introduction
HOPU LY series plate pressure oil purifier can purify transformer oil, turbine oil, hydraulic oils, gear oils, lubricating oil and remove water, mechanical impurities. It is consisted of filter bed, plates, oil pump, motor and filtering papers. The filter bed and plates consist of a filter house, between the plates, the papers as filtering media. It also can purify fuel oil, cooking oil by using special materials and motor. This oil purifier has a simple structure, convenient filter replacement, high filtration precision, easy operation, low cost.

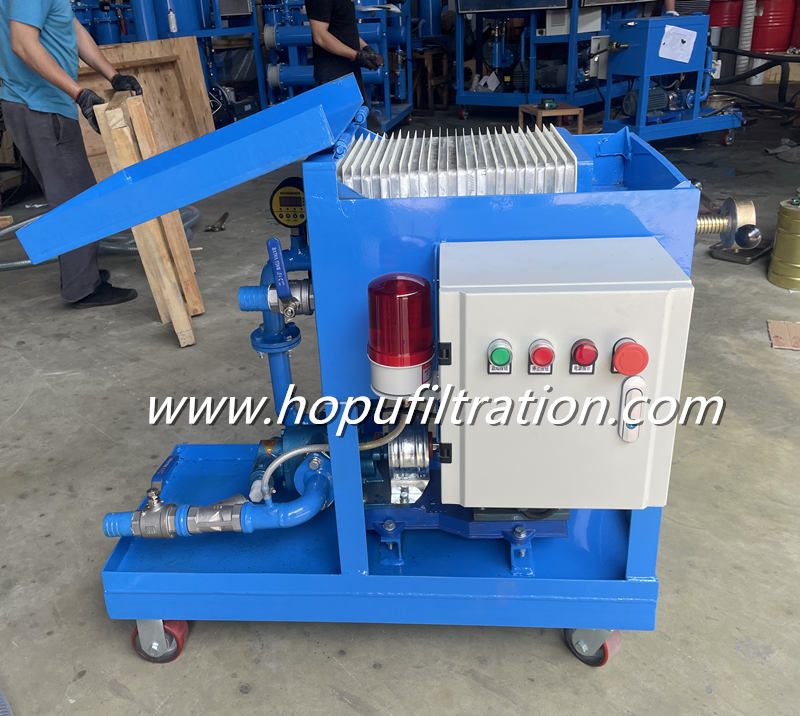

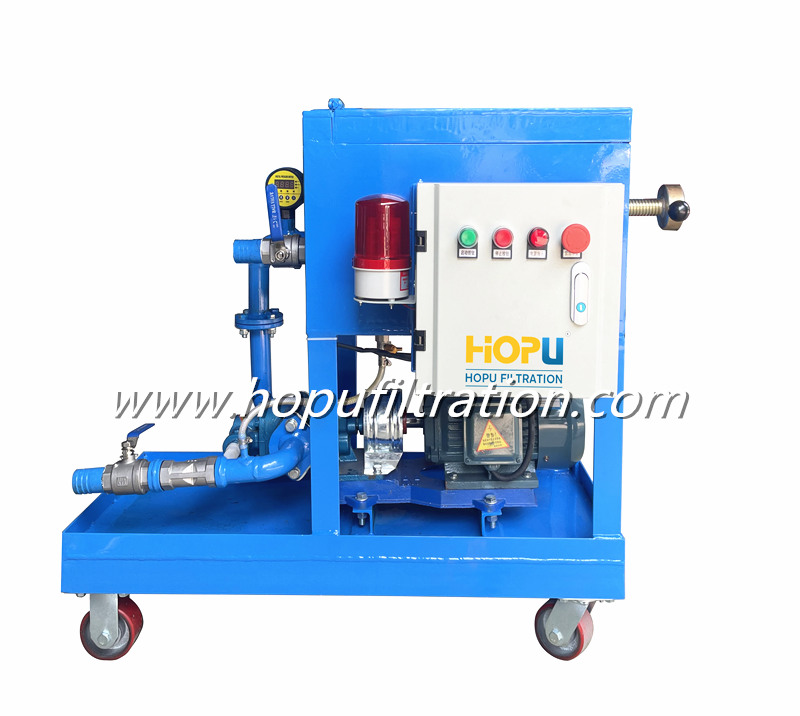

Portable Hydraulic Oil Purification and Filtration Machine Structure
1. The machine is made up of filter bed, oil pump and rough filter.
2. There are filtering media, such as filtering paper or filtering fuse, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device.
3.The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering.
4.It's characterized by simple structure, easy operation, low operation cost
Technical Data
The dimension and weight will be changed with changing the technical specification
| Model | LY-30 | LY-50 | LY-100 | LY-125 | LY-150 | LY-200 | LY-300 |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 7500 | 9000 | 12000 | 18000 |
| Working Pressure | MPa | 0 - 0.5 |
| Filtering Area | ≥m2 | 0.3 | 0.39 | 1.3 | 1.54 | 1.89 | 2.01 | 3.1 |
| Board Frame Size | mm | 180×180 | 280×280 |
| Press Manner | Screw Manually |
| Filter Frame Number | 11 | 13 | 10 | 12 | 14 | 18 | 23 |
| Filter Plate Number | 12 | 14 | 11 | 13 | 15 | 19 | 24 |
| Gear Oil Pump | Flow | L/min | >30 | >50 | >100 | >125 | >150 | >200 | >300 |
Safe
Pressure | MPa | 0.6 |
| Power supply | 380V, 3Phase, 50hz (or as per user's option) |
| Viscosity (mm2/S) | ≤46 |
| Motor | Power | kW | 1.1 | 3 | 4 | 5.5 |
| Rotation Speed | r/min | 1400 | 1420 | 1440 |
| Noise dB(A) | ≤ 55 |
| Filter paper size | mm | 185*190 | 285*290 |
| Diameter | Inlet | mm | 32 | 32 | 44 | 44 | 50 | 50 | 65 |
| outlet | mm | 32 | 32 | 44 | 44 | 50 | 50 | 65 |
| Dimension | Length | mm | 700 | 750 | 1120 | 1200 | 1320 |
| Width | mm | 300 | 500 |
| Height | mm | 720 | 920 | 1000 |
| Weight | KGS | 150 | 250 | 300 | 350 | 400 | 450 | 500 |
| After Purification | Particle Filtering precision | ≤1 ~ 5 µm |
LY Series Plate and Frame Type Oil Purifiers are widely used in power station, power plants, transformer station, petroleum, chemistry, metallurgical and national defense industries. They are designed for filtering water and impurities of transformer oil, turbine oil, hydraulic oil and other oils. Each machine adopts filter paper as filtering elements. According to the client's requirements, they can be optional automatic fluid level control and automatic pressure alarm.
HOPU Oil Filtration Manufacturer is professional for different oil filtration solutions, HOPU can supply the best quality oil purification machine to you. Our price is competitive and we take responsibility to any quality uncertainty. We produce our products using only high quality raw materials and employ many skilled employees and technicians. For more product specification please contact us by email for a detailed catalog. Our factory can provide the most preferential profit to customers all over the world with competitive prices and high quality items.
FAQ
Are you a manufacturer or trading company?
Manufacturer.
HOPU has three workshops to design different product
Workshop 1 is for domestic and standard product design for oil purifier and oil testing unit
Workshop 2 is for double vacuum chamber or high vacuum oil purifier design
Workshop 3 is for customized designs and OEM order
How to ensure the security of purchase from HOPU ?
HOPU is a legal and customs registered enterprise, our products are legal in global customs. Quality and and after sales service can be guaranteed
How to get a quick quotation?
HOPU’s products are supplied and exported to global market, and we will offer quotations to customers from all over the world.
Generally you will receive a reply within 12 hours (due to time difference) from our Service team or salesman
If your inquiry includes complete company name, website, telephone number and specific request of product, you will get a quick quotation
Your inquiry will be replied within 12 hours due to time difference.
Please contact for more technical details and latest price
