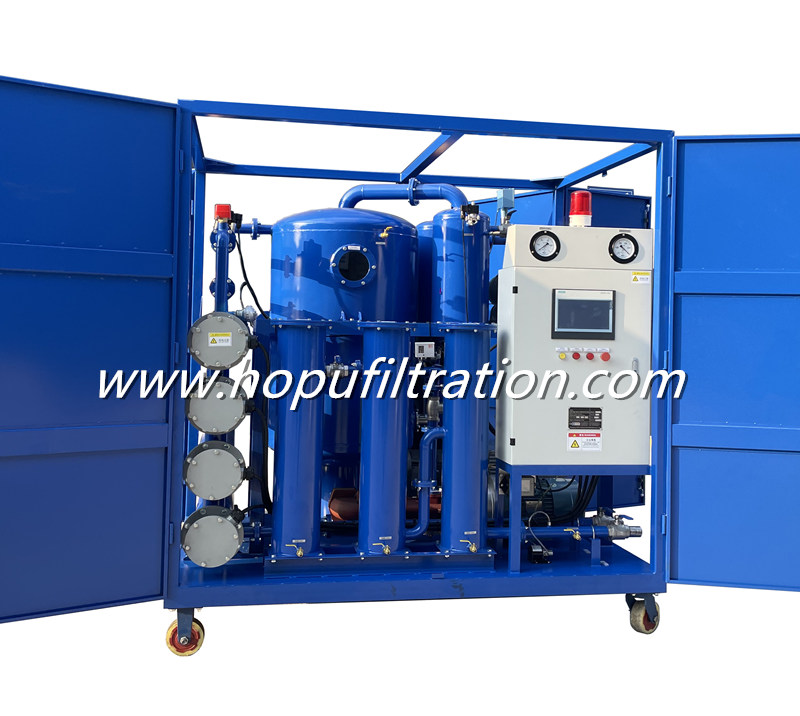

HOPU PLC Fully Automatic Vacuum Transformer Oil Oil Purifier Introduction:
Transformer Dielectric Oil Purification Machine is designed to process and maximize dielectric strength in electrical insulating liquids - including mineral oil, natural esters, synthetic esters, silicone oil and LFH’s (less flammable hydrocarbons) - used in transformers, tap changers, circuit breakers, and other oil-filled electrical devices.
It is also specially used for 500KV, 750KV, 1000KV AC power grid, ±660KV,±800KV DC power supply. This machine has a strong ability of vacuum degassing, oil-water separation, and particles purification. Commonly used in the transformer on-site maintenance and high grade new oil, imported oil, transformer oil, EHV transformer oil deep purification treatment. Also used for vacuum oiling and drying of the transformer.

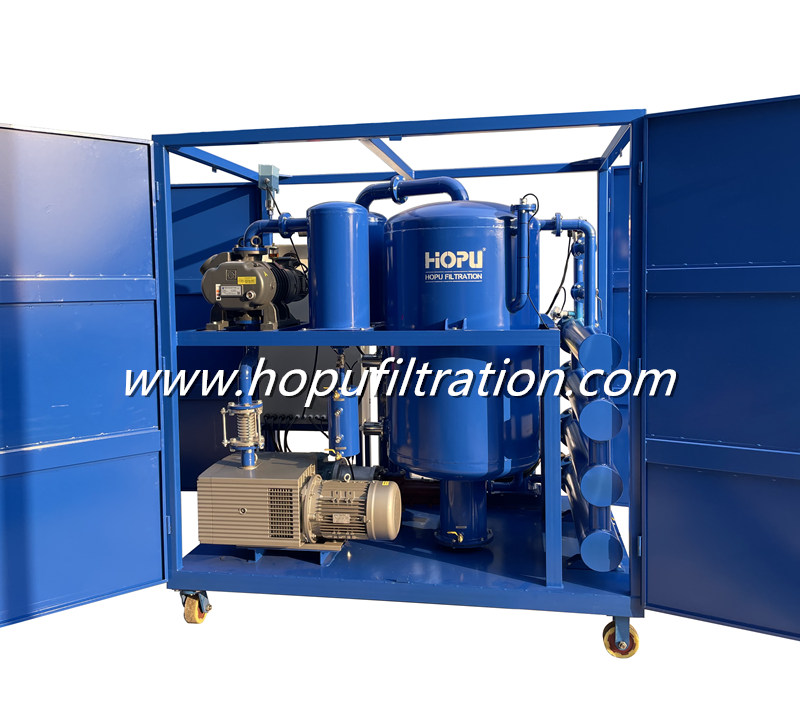

Advanced dehydrating and degassing system that uses large area three-dimensional flash distillation technique to remove harmful composition in the oil such as water, air and gas.
It can be widely used for oil filling for transformers and circuit breakers under vacuum condition.
Precise filtration system, high-quality filter element, multi-stage filtration with gradual precision can help to remove mechanical impurities in the oil.
An advanced fully automatic temperature controlling system, liquid-level controlling system, defoaming controlling system, pressure protecting system and excellent equipment can ensure operation of the equipment with high performance.
PLC Fully Automatic Transformer Oil Purifier Technical Specifications:
Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
Flow Rate | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 |
Flow Rate | L/h | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
Working vacuum | MPa | |
Working Pressure | MPa | |
Temperature Range | ℃ | |
Power |
| AC380V/50HZ/3Ph 5 wire (can be customized) |
Working Noisy | dB A | 68 | 70 | 70 | 75 | 75 | 75 | 75 |
Heating Power | kW | 24 | 36 | 72 | 96 | 120 | 140 | 180 |
Total Power | kW | 27 | 40 | 80 | 104 | 130 | 150 | 196 |
Inlet/Outlet | mm | φ25 | φ32 | φ38 | φ45 | φ50 | φ60 | φ63 |
Weight | kg | 600 | 800 | 1200 | 1400 | 1500 | 1700 | 1900 |
Overall | L | mm | 1550 | 1650 | 1900 | 2000 | 2100 | 2150 | 2200 |
W | mm | 1100 | 1250 | 1350 | 1400 | 1500 | 1550 | 1600 |
H | mm | 1850 | 2000 | 2050 | 2100 | 2150 | 2150 | 2200 |
Index after filtering | bdv | kV | |
moisture content | ppm | |
gas content | % | |
Impurity size | micron | |
Value β | % | |
Cleanness | NAS1638 | |

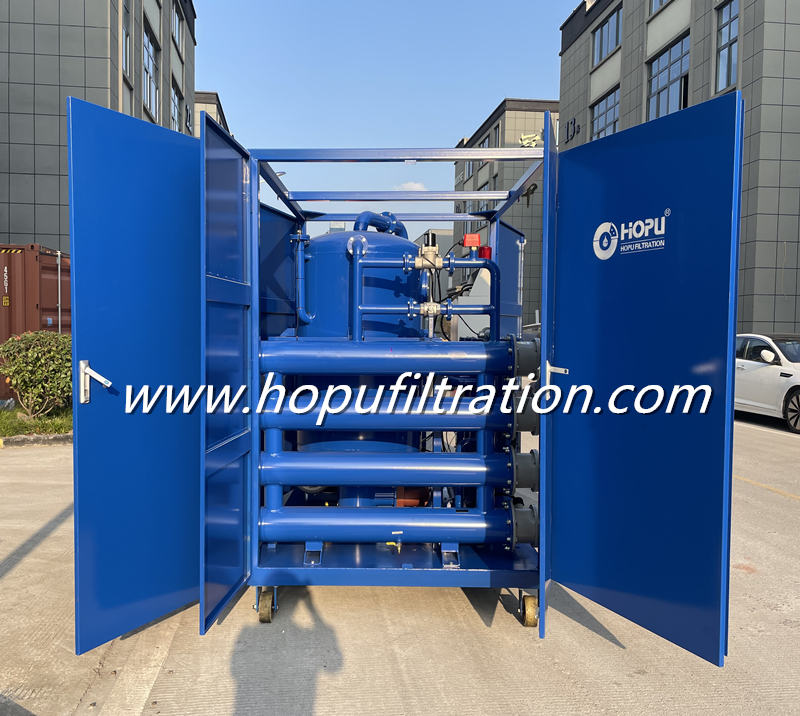

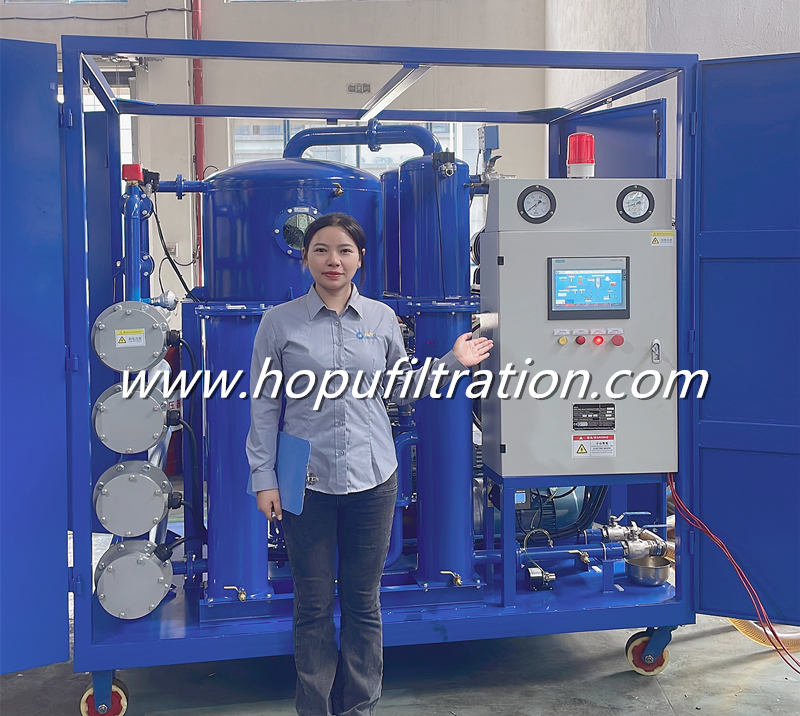

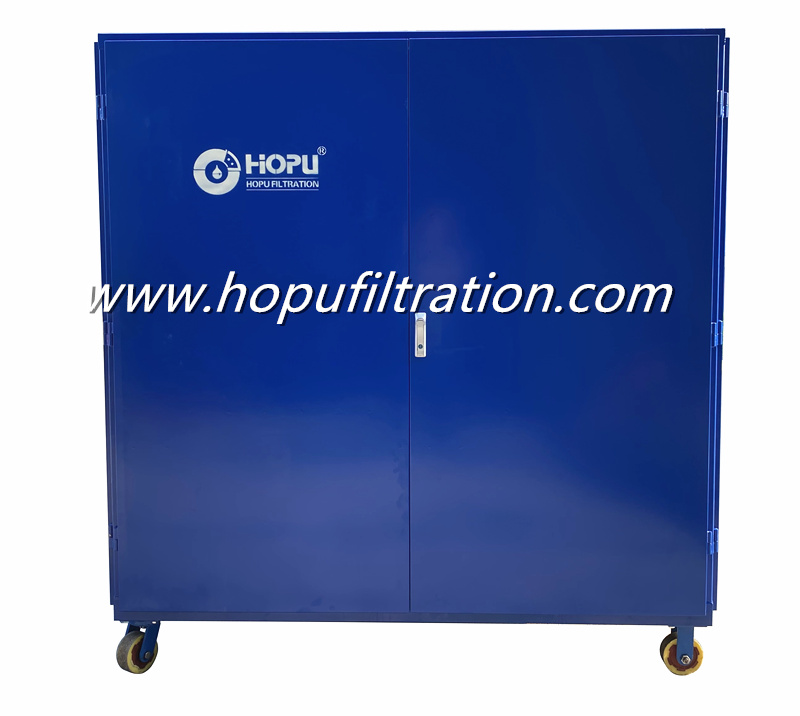

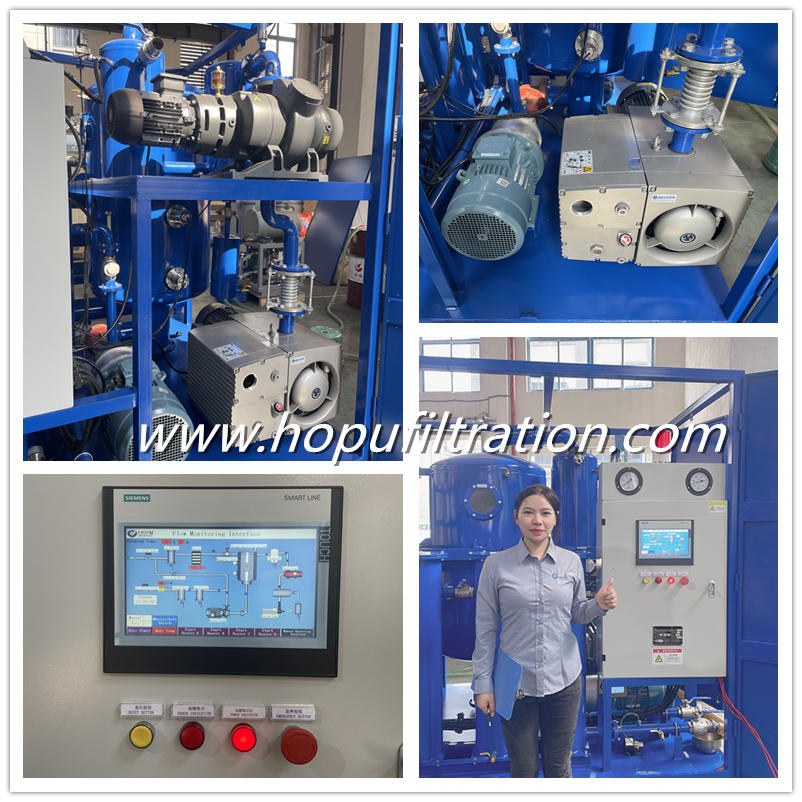

HOPU ZYD Series double stage vacuum transformer oil purifier can be installed SIEMENS brand fully automaic PLC type touch screen operation, HYDRAC filter element for high precision oil filtration, online NAS/ISO cleanness degree monitor, online ppm tester installed. Weather-proof enclosure for outdoor transformer maintenance usage.
This type PLC fully automatic transformer oil purifier is for maintenance of large scale power substation transformers, rapid and deep treatment of new transformer oil, imported insulation oil. As well as vacuum filtering and purifying of mutual inductor oil, capacitor oil, refrigerator oil.It is specially suitable for purifying of large scale power transmission units higher than 110KV and transformers of main state grid.
HOPU Oil Filtration Manufacturer is professional for different oil filtration solutions, HOPU can supply the best quality oil purification machine to you. Our price is competitive and we take responsibility to any quality uncertainty. We produce our products using only high quality raw materials and employ many skilled employees and technicians. For more product specification please contact us by email for a detailed catalog. Our factory can provide the most preferential profit to customers all over the world with competitive prices and high quality items.
FAQ
Are you a manufacturer or trading company?
Manufacturer.
HOPU has three workshops to design different product
Workshop 1 is for domestic and standard product design for oil purifier and oil testing unit
Workshop 2 is for double vacuum chamber or high vacuum oil purifier design
Workshop 3 is for customized designs and OEM order
How to ensure the security of purchase from HOPU ?
HOPU is a legal and customs registered enterprise, our products are legal in global customs. Quality and and after sales service can be guaranteed
