Tan delta tester application:

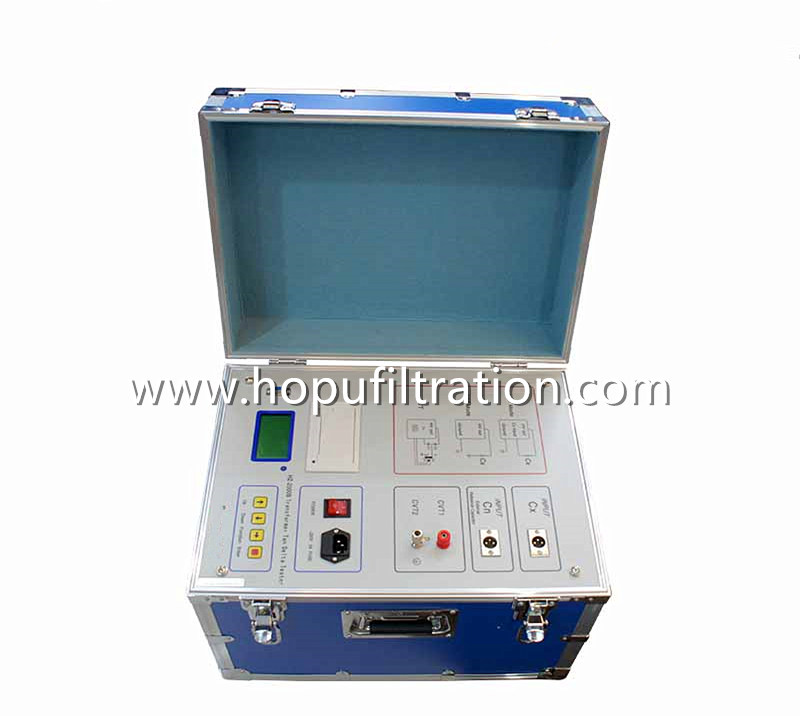

HOPU HJS-300 Automatic Transformer Tangent Delta Tester is a high-precision test instrument for testing the dielectric loss tangent value and capacitance of various high-voltage power equipment on-site or in laboratories such as power plants and power substations. Measurement on dielectric loss tangent value (tgδ) and capacitance of transformer, mutual inductor, reactor, capacitor, bushing and arrester
The instrument is an integrated structure, built-in dielectric loss test bridge, variable frequency voltage regulator power supply, step-up transformer and SF6 high stability standard capacitor. The test high-voltage source is generated by the inverter inside the instrument and used for the test of the tested product after being boosted by the transformer. The frequency can be changed to 45Hz or 55Hz, 55Hz or 65Hz, and the digital notch technology is adopted to avoid the interference of power frequency electric field on the test, and fundamentally solve the problem of accurate measurement under strong electric field interference. At the same time, it is suitable for occasions where generators are used for power supply detection after all power failures.
The instrument is equipped with high-voltage boosting transformer, and has taken zero-passage closing, lightning protection and other safety protection measures. It outputs voltage of different grades ranging from 0.5kV to 10kV during test, which ensures simple and safe operation.
Specification:
| Accuracy | Cx: ±(readingx%+1PF), Tgo: ±(reading%+0.00040) |
| Anti-interference index | within 200% |
| Capacitance range | Internal HV: 3PF-60000PF/10kv 60PF-1UF/0.5kv |
| High voltage output | 0.5KV∽10KV per 0.1kV |
| Accuracy 2% |
| Maximum current 200MA |
| Capacitance 1500 VA |
| Self-Stimulate power supply | AC 0V∽50V/15A 45HZ/55HZ55HZ/65HZ |
| Measuring range | Tgδ Unlimited |
| C x: 5pF ＜ Cx ＜ 300nF10KV: Cx ＜ 60 nF5KV :Cx ＜ 150 nF1KV: Cx ＜ 300 nF |
| CVT Test: Cx ＜ 300 nF |
| Resolution | tgδ: 0.001%Cx: 0.01pF |
| CVT | CVT ratio range 10∽10000CVT ratio accuracy 0.1%CVT ratio resolution 0.01 |
| voltage setting range | 0.5-10kv |
| Measuring duration | About 40s, depending on measuring method |
| Printer | WH-A7 mini-type thermal printer |
| Overall dimension | 460x360x350mm |
| weight | 28kg |
