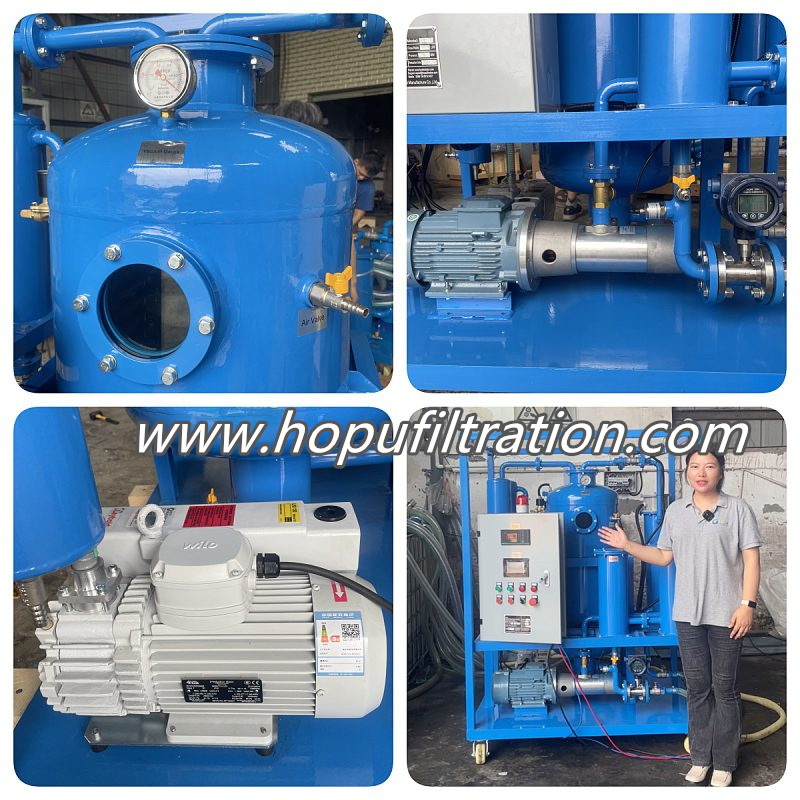

Single Stage Vacuum Insulation Transformer Oil Filtration Machine

Single Stage Vacuum Insulation Transformer Oil Filtration Machine

Inquire Now Next Product Download

Product Description

Single Stage Vacuum Insulation Transformer Oil Filtration Machine Application

The new line of oil filtration and treatment plants Type ZY series, with variable flow capacity, high vacuum chamber, is designed for most economical conditioning and drying of insulating oils.

China Original Vacuum Single Stage Transformer Oil Purifier is designed to remove contaminants (particulate, water, gasses, etc.). Transformer oil maintenance is the key to transformer reliability, performance and longevity. Your transformer’s insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages. Even some new oils may require treatment to limit these contents to acceptable levels.

Single Stage Vacuum Insulation Transformer Oil Filtration Machine

We are a designing, engineering and manufacturing company capable of application customization for best solutions. Compact in structure, simple in operation, convenient in maintence and low cost, this filter is a new necessary product for the treatment of oil used in transformers, mutual inductors, switches and etc. of the electric industry and mining enterprises. It can filter out the water, gas and mechanical contaminants quickly and make the filtered oil up to or near the use standard of new oil

Contaminants in transformer oil:

Solid particles like rust scales, dust and fibres
Generation of carbon particles due to ageing of switchgear
Oil absorbs moisture resulting in free and dissolved water
Absorption of air
Aging fluids produce absorbed gases, causing equipment failure and arc suppression in switchgear
Sludge formation
Increase in acidity level
Chemical products are caused by oxidation, as well as cross contamination of other products.

Single Stage Vacuum Insulation Transformer Oil Filtration Machine

HOPU Oil Purifier Technical Data

Parameters		Unit	ZY-6	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100	ZY-150
Flow Rate		L/min	6	10	20	30	50	10	150
Flow Rate		L/h	360	600	1200	1800	3000	6000	9000
Working vacuum		MPa	-0.06～-0.095
Working Pressure		MPa	≤ 0.4
Temperature Range		℃	20 ～ 80
Power			AC380V/50HZ/3Ph 5 wire (can be customized)
Working Noisy		dB A	60	61	63	70	70	75	70
Heating Power		kW	9	11	13	15	30	48	58
Total Power		kW	9.7	12.5	14.5	16.5	33.5	53	65
Inlet/Outlet		mm	φ20	25	φ25	φ25	φ32	φ42	φ50
Weight		kg	150	230	250	270	300	500	700
Overall	L	mm	970	1050	1100	1150	1200	1600	1600
	W	mm	630	750	850	900	950	1000	1100
	H	mm	900	1300	1400	1450	1500	1800	1800
Index after filtering	bdv	kV	≥65
	moisture content	ppm	≤5
	gas content	%	≤0.1
	Impurity size	micron	≤1 (no free carbon)
	Value β	%	96

Through HOPU transformer the vacuum dehydrator, degasification, filtration processes, the dissolved gases and moisture, solid particulate, free carbon,acid contamination can be completely removed,thus improve the oil dielectric strength,oil color,and oil quality as well.
